When searching for a large format blueprint scanner, the key considerations include scan quality, speed, and ease of use. The Plustek OpticPro A320E stands out as the best overall choice thanks to its fast 7.8-second scan speed and high-resolution capabilities. For those prioritizing speed, the VIISAN VF3240 offers a rapid 4-second scan, ideal for high-volume workflows. If budget is a concern, the Plustek OpticSlim 1680 provides quick scans at a lower price point. Keep in mind, tradeoffs often involve balancing resolution against scan speed or device complexity. Continue reading for a detailed breakdown of each option to help you find the best fit for your needs.
Key Takeaways
- High-resolution scanners like the CZUR ET24 Pro and CZUR Aura Pro excel for detailed blueprint work but tend to be more expensive.
- Speed-focused models such as the VIISAN VF3240 and Plustek OpticSlim 1680 are ideal for fast workflows but may sacrifice some image detail.
- Wide-format scanners like the Colortrac SmartLF 36-inch are best suited for large-scale projects where size and precision matter most.
- Flatbed options like the Plustek OpticPro A320E provide excellent versatility for mixed document types but are often slower than dedicated large-format scanners.
- Ease of use and compatibility with multiple OS platforms are common differentiators, especially for users who need plug-and-play solutions.
| large format blueprint scanner | Connectivity |
|---|---|
| Plustek OpticPro A320E | USB, TWAIN, WIA |
| Plustek Large Format Document | USB |
| VIISAN Large Format Book & Doc | USB |
| Plustek OS1180 Flat Scanner fo | USB |
| CZUR ET24 Pro Professional Boo | USB |
| VIISAN VF3240 A3 Scanner | — |
| Colortrac SmartLF 36-inch Wide | — |
| Plustek OpticSlim 1680 | — |
| CZUR Aura Pro Book & Document | — |
More Details on Our Top Picks
Plustek OpticPro A320E – A3 CCD Sensor Flatbed Scanner, 12″ x 17″ scan Area with 7.8 Second Speed
This flatbed scanner stands out for its combination of large scan area and quick processing, making it ideal for detailed blueprint and map digitization. Its CCD sensor ensures high-quality images with accurate color reproduction, surpassing the resolution of the Plustek OS1180, which is more limited in size and speed. The A320E supports batch scanning and OCR, boosting productivity for professional users. Compared to the VIISAN large format camera, it offers a more straightforward, plug-and-play experience with consistent flatbed results, though it lacks the ultra-high resolution of the VIISAN for detailed, high-res scans. The tradeoff here is that this model is bulkier and more expensive, but it provides reliable, high-quality output suitable for professional archives and large-format documents.
Pros:- Large 12″ x 17″ scan area captures most large-format documents in one go
- Fast scan speed of under 8 seconds per page for efficiency
- Supports batch scanning and OCR for productivity
Cons:- Bulky size requires significant desktop space
- Higher price point compared to smaller or portable scanners
Best for: Professionals needing reliable, high-speed scanning of large maps, blueprints, and bound documents in an office or studio setting.
Not ideal for: Casual users or those with limited desk space, as the flatbed is large and the device is relatively bulky.
- Maximum scan size:12″ x 17″
- Scan speed:7.8 seconds
- Connectivity:USB, TWAIN, WIA
- Supported OS:Windows, Mac, Linux
- Sensor type:CCD
- File formats:PDF, JPEG, TIFF
Our verdict“This scanner is best suited for professionals who need high-quality, large-format digital captures on a regular basis.”

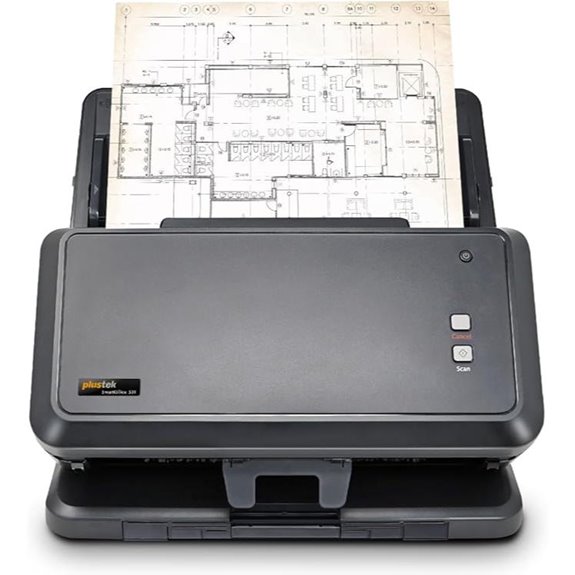

Plustek Large Format Document Scanner S30 – Wide Format Tabloid, Ledger, A3
The Plustek S30 offers a compact, versatile solution for scanning documents up to 12 inches wide and up to 200 inches long. Its automatic size detection and duplex scanning streamline workflow, making it well-suited for engineering plans, blueprints, and architectural drawings. Compared with the Plustek OpticPro A320E, the S30’s upright storage design saves space but sacrifices some speed and resolution, which might matter for high-detail requirements. While it doesn’t support wireless connectivity, its USB interface keeps setup straightforward. This model is a strong choice for those who prioritize space efficiency and need to handle a variety of large-format documents without the need for high-end, high-speed processing.
Pros:- Handles wide-format documents up to 12 inches wide
- Duplex and automatic size detection improve efficiency
- Compact, upright design saves desk space
Cons:- Limited to 12-inch wide documents, not suitable for larger formats
- No wireless connectivity options
Best for: Architects, engineers, and office environments where space-saving, high-volume, wide-format scanning is essential.
Not ideal for: Casual users or those needing high-resolution, detailed scans of small or highly detailed drawings, as it’s optimized for large, less detailed documents.
- Maximum scan width:12 inches
- Maximum scan length:200 inches
- Sheet capacity:100 sheets
- Duplex:Yes
- Connectivity:USB
- Supported document types:blueprints, architectural plans, engineering drawings
Our verdict“This scanner offers excellent value for those needing space-efficient, wide-format document scanning in high-volume settings.”
VIISAN Large Format Book & Document Scanner, A2/A3 Capture, 26MP USB Document Camera with Auto-Flatten and OCR
The VIISAN S21 provides remarkable 26MP imaging, making it a strong option for detailed, high-resolution scans of maps, books, and 3D objects. Its auto-flattening and finger removal features differentiate it from flatbed scanners like the Plustek OS1180, especially when capturing curved or uneven surfaces. While it excels in detailed imaging, it’s less suitable for bulk scanning or fast workflows compared to flatbed options, and its compatibility is limited to Windows and macOS, excluding Linux users. Its high resolution makes it ideal for professionals needing precise, detailed images, but the setup complexity and cost can be drawbacks for casual or budget-conscious users.
Pros:- Exceptional 26MP resolution captures fine details
- Supports large formats up to A2/A3 sizes
- Auto-flattening and finger removal improve scan quality
Cons:- Limited compatibility excludes some users (ARM devices, Linux)
- Higher cost and complexity compared to flatbed scanners
Best for: Researchers, archivists, and professionals requiring ultra-detailed digital copies of large-format documents, books, or 3D objects.
Not ideal for: Users seeking quick, high-volume scanning of simple blueprints or those on a tight budget, due to its higher cost and specialized setup.
- Capture size:A2/A3
- Resolution:26MP
- Supported DPI:up to 600
- Connectivity:USB
- Lighting:Built-in 3-level LED
- Compatibility:Windows, macOS
Our verdict“This high-resolution camera is best for those prioritizing ultra-detailed scans over speed or bulk capacity.”
Plustek OS1180 Flat Scanner for A3 Documents and Graphics
The Plustek OS1180 excels at delivering high-quality scans of A3 documents quickly, making it a practical choice for busy offices. Its LED lighting ensures consistent, color-accurate results, and its one-touch operation simplifies daily tasks. Compared with the CZUR ET24 Pro, which offers advanced flattening for books, the OS1180 focuses more on speed and ease of use for flat paper documents. Its main limitation is size—restricted to A3—and it lacks wireless connectivity, which might be a concern for users looking for more flexible, wireless workflows. Still, for those who need reliable, fast scans of large flat documents, this model fits well into professional or academic environments.
Pros:- Fast scanning speed of around 9 seconds for A3 documents
- High-quality color and grayscale output
- One-touch preset for easy operation
Cons:- Limited to flat, A3 documents only
- No wireless or network connectivity options
Best for: Professionals needing quick, high-quality scans of large flat documents in busy workspaces.
Not ideal for: Users who frequently scan curved or bound materials or need wireless operation, as it’s optimized for flat, A3-sized papers.
- Maximum scan size:11.7″ x 17″
- Scan mode:48-bit color / 16-bit grayscale
- Pre-set functions:One-touch button
- Software bundle:ABBYY OCR, DocAction
- Scan speed:approximately 9 seconds
- Connectivity:USB
Our verdict“This scanner is ideal for quick, high-quality flat document scans in professional environments where speed matters.”
CZUR ET24 Pro Professional Book Scanner, 24MP Document Camera, A3 Document Scanner with Auto-Flatten & OCR
The CZUR ET24 Pro combines a high-resolution 24MP camera with advanced flattening technology, making it ideal for digitizing curved books, fragile documents, and other materials that are difficult to flat scan. Its real-time preview and OCR supporting over 180 languages make it a flexible tool for multilingual document digitization. Compared with flatbed options like the Plustek OS1180, it offers greater versatility for non-flat or delicate materials, though it’s less suited for large batch scanning of standard blueprints due to potentially slower processing and setup complexity. Its compatibility with Windows, macOS, and Linux broadens its appeal, but glare susceptibility on very shiny papers can be a drawback.
Pros:- High-resolution 24MP camera captures detailed images
- Advanced flattening technology for curved surfaces
- Supports multiple languages with OCR
Cons:- Less efficient for bulk or fast scanning workflows
- Potential glare issues with very shiny papers
Best for: Archivists, researchers, and professionals needing detailed, curved, or fragile document digitization with multi-language OCR.
Not ideal for: Users needing fast, bulk scans of flat blueprints or large-format drawings, as it’s optimized for curved and delicate materials.
- Camera resolution:24MP
- Supported document size:A3
- DPI:320
- Supported languages OCR:180+
- Connectivity:USB
- System compatibility:Windows, macOS, Linux
Our verdict“This scanner is best for those needing to digitize curved or fragile documents with high detail and multilingual OCR support.”
VIISAN VF3240 A3 Scanner – Fastest 4-Second Scan, 2400 DPI High Resolution, Frameless Auto-Scan for CAD & Business
The VIISAN VF3240 stands out for combining high-resolution 2400 DPI scans with a remarkably fast 4-second speed, making it ideal for busy offices handling detailed CAD drawings or large-format documents. Its frameless design allows edge-to-edge scanning, which is particularly useful for large blueprints, setting it apart from bulkier flatbeds like the Plustek OpticSlim 1680. However, its focus on flat materials limits flexibility—3D objects or heavily textured surfaces aren’t compatible. The limited Windows driver support (600 DPI for WIA) could be a drawback for users needing ultra-fine detail on Windows, but MacOS compatibility is strong. This scanner is best suited for professionals prioritizing speed and high detail in flat, large documents.Pros:- Exceptional 2400 DPI resolution captures fine detail
- Fast 4-second scan speed for large documents
- Frameless design allows edge-to-edge scanning
- Auto-scan feature enhances productivity
Cons:- Limited to flat, non-textured materials
- Windows driver support restricted to 600 DPI via WIA
- Not suitable for scanning 3D objects or embossed surfaces
Best for: Architects, engineers, or project managers needing quick, detailed scans of large, flat blueprints or CAD files.
Not ideal for: Businesses that require scanning three-dimensional objects or those with complex textured surfaces, since the device only handles flat materials well.
- Resolution:2400 x 2400 DPI
- Color Depth:48-bit
- Scan Speed:4 seconds at 200 DPI (A3)
- Maximum Document Size:A3 (11.7 x 16.5 inches)
- Compatibility:Windows 7/8.1/10/11, MacOS 10.15+
- Sensor Technology:CIS
Our verdict“This pick is perfect for professionals who need rapid, high-quality scans of flat large-format drawings and blueprints.”
Colortrac SmartLF 36-inch Wide Format Scanner
The Colortrac SmartLF excels in delivering precision color reproduction on massive 36-inch wide documents, making it ideal for detailed posters, large maps, or artwork. Compared to the VIISAN VF3240, which is better suited for high-detail flat scans, the SmartLF’s strength lies in its ability to handle wide-format, color-rich materials quickly and accurately. Its large size means it requires significant space, and the investment can be steep for casual or small-scale users. Nonetheless, for architectural firms or printing shops that need consistent color fidelity on large sheets, this model offers unmatched scale and performance, though at a higher price point.Pros:- Exceptional color accuracy and reproduction
- Designed specifically for large documents up to 36 inches wide
- Fast scanning speeds for professional workflows
Cons:- Expensive compared to smaller or multifunction options
- Large footprint requires ample space
- Overkill for casual or infrequent use
Best for: Large architectural or engineering firms needing high-quality color scans of wide blueprints or detailed large-format graphics.
Not ideal for: Home users or small offices with limited space and lower-volume needs, due to its size and cost.
- Width:36 inches
- Type:Wide format scanner
- Color:Color
Our verdict“This scanner is best suited for high-volume, color-critical large-format projects where size and color fidelity matter most.”
Plustek OpticSlim 1680 – High Speed Large Format Flatbed Scanner, scan Tabloid Size in 3 Seconds. Dual View Function Enable You to Quickly Check the Image Adjustment Effect
The Plustek OpticSlim 1680 distinguishes itself through its incredible speed of just 3 seconds per tabloid-sized scan at 300 DPI in grayscale, making it suitable for rapid document digitization. Its simple, intuitive interface and dual-view function allow quick checks of image adjustments, which benefits busy workflows. While not as high-resolution as the VIISAN VF3240, it offers a more streamlined user experience for those who prioritize speed and ease of use. Its flatbed design limits it to flat materials, so it isn’t ideal for thick or textured items. Compared to premium wide-format scanners, it offers a more affordable yet capable solution for large-format flat documents.Pros:- Rapid 3-second scans at 300 DPI grayscale
- User-friendly with simple one-key operations
- Dual view function for quick image quality checks
- Supports TWAIN & ICA for broad software compatibility
Cons:- Limited to flat, non-textured materials
- Lower maximum resolution compared to high-end flatbeds
- No dedicated color high-res mode for detailed color scans
Best for: Office staff or archivists needing quick, high-volume scans of large flat documents like posters or tabloid newspapers without fuss.
Not ideal for: Users needing detailed color accuracy or 3D object scanning, as this model focuses on speed and flat document handling.
Our verdict“This scanner makes sense for professionals who need fast, bulk digitization of large, flat documents with minimal fuss.”
CZUR Aura Pro Book & Document Scanner,Capture A3 & A4, Auto-Flatten & Deskew Powered by AI Technology, Foldable & Portable
The CZUR Aura Pro offers a unique blend of automation and portability, utilizing AI-powered flattening and deskewing to produce sharp scans of books, curved documents, and A3/A4 materials. Compared to the VIISAN or Plustek flatbeds, its foldable, portable design makes it an excellent choice for on-the-go professionals or educational settings. Its ability to handle curved pages with AI technology means it can outperform traditional flatbeds when digitizing books or irregularly shaped documents. However, its resolution and color fidelity are more oriented toward general document clarity rather than ultra-fine detail, making it less suitable for high-precision CAD or detailed blueprints. This device is ideal for those seeking automation and mobility in large-format scanning.Pros:- AI-powered flattening and deskewing improve image quality
- Foldable and portable design for mobility
- Fast 2-second page scanning speed
- Supports multiple formats and OCR with over 180 languages
Cons:- Lower resolution compared to dedicated high-res flatbeds
- Color fidelity may not match professional-grade scanners
- Dependence on AI for flattening might struggle with very thick or heavily curved pages
Best for: Researchers, educators, or field professionals who need to scan books or irregular large-format documents with minimal manual correction.
Not ideal for: Users requiring extremely high-resolution or color-accurate scans, such as detailed engineering blueprints or fine artwork reproduction.
Our verdict“This device is ideal for mobile professionals and educators needing quick, automated scans of books and large, irregular documents, sacrificing some resolution for convenience.”
How We Picked
The scanners included in this roundup were evaluated based on several core criteria: image quality (resolution and color accuracy), scan speed, compatibility with different operating systems, build quality, ease of use, and overall value. Devices were selected to represent a range of budgets and use cases, from casual users to professional design firms. Rankings reflect a balance between performance and affordability, with special attention to features that improve workflow efficiency, such as auto-flattening and OCR capabilities. Products with significant tradeoffs—like slower speeds or higher costs—were included for comparison, helping buyers understand what they get at different price points.| large format blueprint scanner | Connectivity |
|---|---|
| Plustek OpticPro A320E | USB, TWAIN, WIA |
| Plustek Large Format Document | USB |
| VIISAN Large Format Book & Doc | USB |
| Plustek OS1180 Flat Scanner fo | USB |
| CZUR ET24 Pro Professional Boo | USB |
| VIISAN VF3240 A3 Scanner | — |
| Colortrac SmartLF 36-inch Wide | — |
| Plustek OpticSlim 1680 | — |
| CZUR Aura Pro Book & Document | — |
Factors to Consider When Choosing Large Format Blueprint Scanner
Choosing the right large format blueprint scanner involves more than just looking at specs. Consider how your workflow and project size influence your needs, and think about the long-term value of features like resolution, speed, and ease of maintenance. A well-chosen scanner can streamline your process, but a mismatch can lead to frustration and added costs. Here are key factors to keep in mind:Scan Resolution and Quality
Resolution determines how detailed your scanned blueprints will appear, which is critical for professional use where clarity matters. Higher DPI settings produce sharper images but often slow down the scan process and increase file sizes. For most technical drawings, a minimum of 600 DPI is advisable, but if your work involves fine details, consider models with 1200 DPI or higher. Remember, higher resolution scanners tend to cost more and may require more maintenance, so balancing quality with your workflow speed and storage capacity is essential.
Speed and Workflow Efficiency
If your project involves scanning large volumes of blueprints daily, speed becomes a priority. Models like the VIISAN VF3240 offer rapid 4-second scans, which can significantly improve productivity. However, faster scanners often have tradeoffs in resolution or features like auto-flattening. For occasional use or smaller batches, slightly slower models may suffice and offer better image quality or lower costs. Consider your typical workload and whether speed or quality should take precedence.
Size and Compatibility
The physical size of your scanner should match your workspace and document dimensions. Wide-format models like the Colortrac SmartLF are designed for large blueprints, but they require more space and investment. Flatbed scanners, while more compact, may struggle with very large drawings and can be slower. Compatibility with your computer’s operating system and existing software is also critical—look for models that support Windows, Mac, or both, along with driver stability and software updates.
Ease of Use and Maintenance
A user-friendly interface and straightforward maintenance routines reduce downtime and frustration. Features like auto-flattening and OCR can save time, especially when managing multiple documents. Consider how easy it is to load and unload blueprints, clean the scanner, and troubleshoot common issues. Investing in a durable model with reliable customer support can pay off over years of use.
Price and Long-term Value
While budget constraints are real, selecting a scanner purely based on price may lead to compromises on quality or durability. Consider the total cost of ownership, including maintenance, software updates, and potential repairs. Sometimes spending more upfront on a reliable model results in savings through fewer replacements and better workflow integration. Balance your immediate budget with your long-term needs for efficiency and quality.
Frequently Asked Questions
How do I know if a large format blueprint scanner supports my operating system?
Most large format scanners specify their compatibility on their product pages. Before purchasing, verify they support your OS version—whether Windows, Mac, or both—and check for driver availability and software updates. Some models include multi-platform support out of the box, while others may require additional drivers or software. Ensuring compatibility upfront prevents installation issues and workflow disruptions later.
Is higher DPI always better for blueprint scanning?
Higher DPI produces more detailed images, which is beneficial for precise technical work. However, it also results in larger file sizes and longer scan times. For most blueprints, a resolution of 600-1200 DPI strikes a good balance between quality and efficiency. If your project requires extreme detail, opting for the highest DPI makes sense, but for general purposes, moderate settings can save time and storage.
Should I choose a flatbed or a dedicated large-format scanner?
Flatbed scanners offer versatility and are suitable for scanning various document types, but they can be slower and limited in maximum size. Dedicated large-format scanners are designed specifically for large blueprints, providing faster speeds and higher accuracy for big documents. The choice depends on your typical document size, volume, and whether you need multi-purpose functionality. For frequent large blueprint work, dedicated models generally provide better performance.
How important are auto-flatten and OCR features in blueprint scanners?
Auto-flattening ensures that curved or folded blueprints are scanned flat, improving clarity and reducing post-processing. OCR can be useful if you need to convert printed text within your blueprints into editable digital text, saving time on manual data entry. These features boost workflow efficiency, especially for large batches, but they often come with a higher price. Evaluate whether these capabilities justify the additional investment based on your specific needs.
What should I consider regarding maintenance and ongoing costs?
Regular cleaning, software updates, and occasional hardware repairs are part of maintaining a large format scanner. Some models have more accessible parts and easier maintenance routines, reducing downtime. Additionally, check if the manufacturer offers good customer support or warranty options. While initial costs are important, understanding the ongoing expenses helps ensure your investment remains reliable and cost-effective over its lifespan.
Conclusion
For most professional users handling frequent large blueprint scans, the Plustek OpticPro A320E offers the best overall balance of speed, quality, and versatility. Budget-conscious buyers should consider the Plustek OpticSlim 1680 for fast, reliable scans at a lower price. Those seeking premium image detail and advanced features might prefer the CZUR ET24 Pro or CZUR Aura Pro. Beginners or casual users will find flatbed options easier to operate, while large-scale design firms should look toward wide-format models like the Colortrac SmartLF. Your choice depends on your specific project volume, budget, and space constraints, but these picks cover the most common needs effectively.
